Pad Eyes

Features:

  • Welded into place where needed
  • Flat, beveled, and plate base models available
  • Sizes designed to fit Crosby shackle dimensions
  • Cold galvanized finish
  • Design & Fabricated to ASME BTH-1 design standard
  • Proof Tested to 125%
flat padeye beveled padeye plate mount padeye

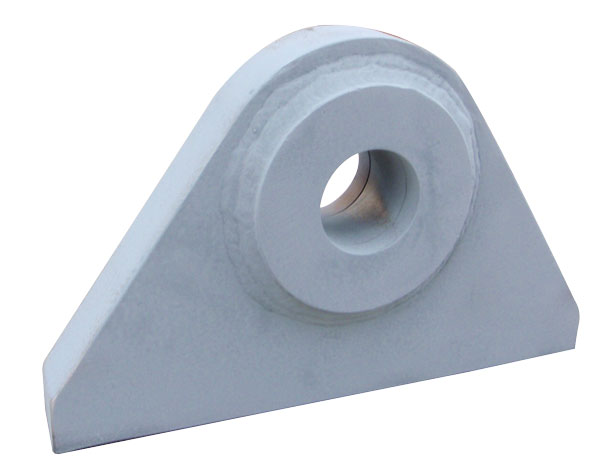

Flat

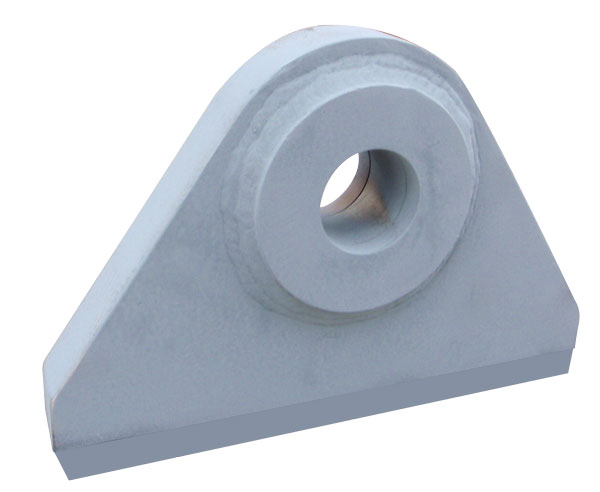

beveled

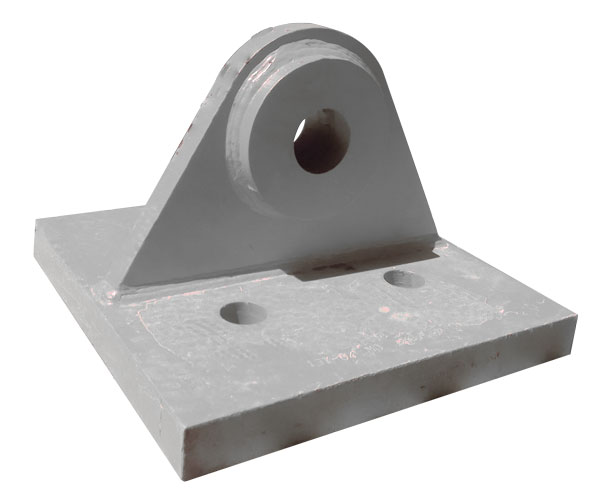

plate mount



Capacity (tons)
Model
Fits Shackle Size G-209/G-2130
Weight Approx. (lbs.)
Flat
Beveled
Plate Mount
1
PE-00100
PEB-00100
PEP-00100
3/8"
1.25
1.5
PE-00150
PEB-00150
PEP-00150
7/16"
1.3
2
PE-00200
PEB-00200
PEP-00200
1/2"
1.75
3.25
PE-00325
PEB-00325
PEP-00325
5/8"
3
4.75
PE-00475
PEB-00475
PEP-00475
3/4"
4
6.5
PE-00650
PEB-00650
PEP-00650
7/8"
6
8.5
PE-00850
PEB-00850
PEP-00850
1"
8
9.5
PE-00950
PEB-00950
PEP-00950
1-1/8"
9
12
PE-01200
PEB-01200
PEP-01200
1-1/4"
9.5
13.5
PE-01350
PEB-01350
PEP-01350
1-3/8"
13.5
17
PE-01700
PEB-01700
PEP-01700
1-1/2"
17
25
PE-02500
PEB-02500
PEP-02500
1-3/4"
17.5
35
PE-03500
PEB-03500
PEP-03500
2"
20
55
PE-05500
PEB-05500
PEP-05500
2-1/2"
25

* Cheek plates (spacers) are not included on all models.
